114738 EXCHANGERS
  • ITEM NO :  114738
  • QTY :  1
  • ALLOY :  C
  • SQ.FT. :  791
  • MATERIAL (S) :  CS
  • MATERIAL (T) :  CS
  • MATERIAL (H) :  CS
  • PSI (S) :  607FV
  • PSI (T) :  709FV
  • TEMP. DEG. F (S) :  490
  • TEMP. DEG. F (T) :  150
  • TUBE LENGTH FT'IN" :  15'0"
  • V/H :  H
  • CODE :  NB
  • TEMA TYPE :  AEU
  • SHELL DIAMETER FT'IN" :  1'10"
Technical Drawings/Spec Sheets
View Documents Data Sheets
View Documents Detailed Fab Drawings
View Documents General Arrangement
View Documents Mechanical Design
View Documents Transport
ADDITIONAL DESCRIPTION

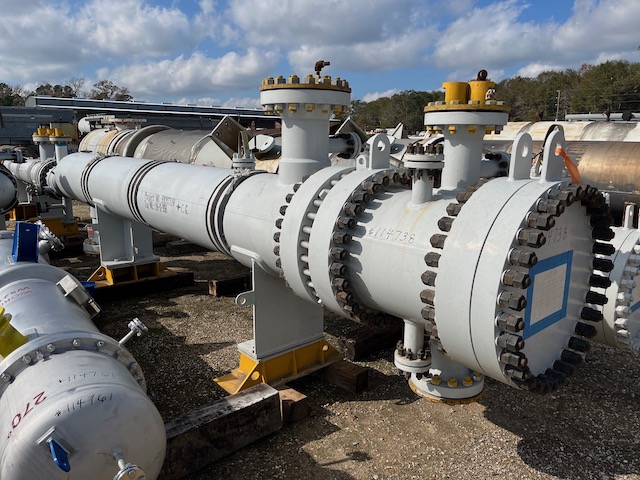

Unused 791 sq. ft. heat exchanger. Mfg. by Wuxi Chemical Equipment in 2023. 2.2 Design duty (MMBTU/Hr). Shell Design Rating: 550/FV psig @ 490 deg. F. Tube Design Rating: 425/FV psig @ 150 deg. F. Shell mawp 607.4/FV psig @ 490 deg. F. Tube mawp 709.2/FV psig @ 150 deg. F. 22.6" X 180". Vapor Cooler. Under Nitrogen Purged.
