114720 EXCHANGERS
  • ITEM NO :  114720
  • QTY :  1
  • ALLOY :  S
  • SQ.FT. :  872
  • MATERIAL (S) :  CS
  • MATERIAL (T) :  DUPLEX 2205
  • MATERIAL (H) :  CS
  • PSI (S) :  527FV
  • PSI (T) :  373FV
  • TEMP. DEG. F (S) :  430
  • TEMP. DEG. F (T) :  380
  • TUBE LENGTH FT'IN" :  12'0"
  • V/H :  V
  • CODE :  NB
  • TEMA TYPE :  BEM
  • SHELL DIAMETER FT'IN" :  1'9"
Technical Drawings/Spec Sheets
View Documents (no title)
View Documents (no title)
View Documents (no title)
View Documents (no title)
View Documents (no title)
View Documents (no title)
View Documents (no title)
View Documents (no title)
View Documents (no title)
ADDITIONAL DESCRIPTION

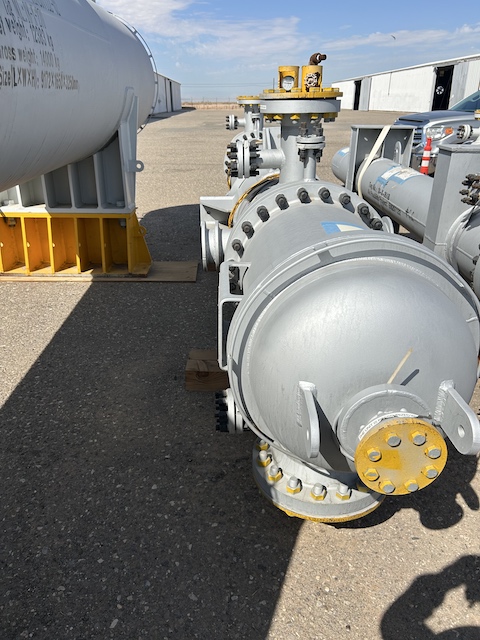

Unused 872 sq. ft. vertical heat exchanger. Mfg. by Wuxi Chemical Equipment (China) in 2023. 11.473 Design duty (MMBTU/Hr). Shell Design Rating: 232/FV psig @ 430/300 deg. F. Tube Design Rating: 180/FV psig @ 380/300 deg. F. Shell mawp 527.5/FV psig @ 430 deg. F. Tube mawp 373.2/FV psig @ 400 deg. F. 21.25" X 144". Ammonia stripper reboiler. Under Nitrogen Purged.
