114612 TANKS
  • ITEM NO :  114612
  • QTY :  1
  • ALLOY :  S
  • GALLONS :  1693
  • DIA/WIDTH (FT'IN") :  5'9"
  • LENGTH (FT'IN") :  8'0"
  • SHELL PSI :  ATM
  • FULL VAC. Y/N :  N
  • SHELL TEMP DEG. F :  200
  • V/H :  V
  • SHELL MATERIAL :  304SS POLISHED
  • CODE :  NO
  • AGITATED Y/N :  N
  • TOP HEAD :  FLAT HINGED
  • BOTTOM HEAD :  DISHED
Technical Drawings/Spec Sheets
View Documents Drawing
ADDITIONAL DESCRIPTION

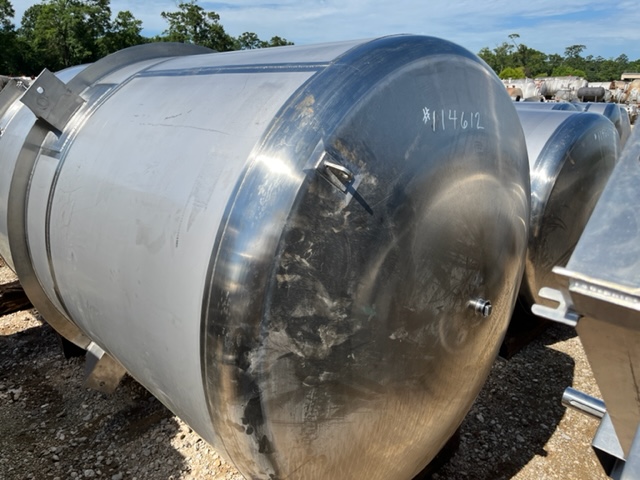

Used 304 polished stainless steel single wall mix tank. Mfg. by ICC Northwest in 2021. 1693 Gallon capacity, 69" diameter x 8' high. Atmospheric @ 200 deg. F. On lug supports, dished bottom head and flat hinged top. (3) internal sidewall baffles. Set up for top bridge mounted agitator, includes agitator shaft and blades. Nozzle connections: Top 4" agit., (1)2" TC, (2)4" TC, (2)2" FNPT, Btm. 2" TC (CBO).
