114608 TANKS
  • ITEM NO :  114608
  • QTY :  1
  • ALLOY :  S
  • GALLONS :  998
  • DIA/WIDTH (FT'IN") :  4'9"
  • LENGTH (FT'IN") :  7'0"
  • SHELL PSI :  ATM;
  • FULL VAC. Y/N :  N
  • SHELL TEMP DEG. F :  200
  • V/H :  V
  • SHELL MATERIAL :  304SS POLISHED (NEED TO VERIFY IF 304 OR 316)
  • CODE :  NO
  • AGITATED Y/N :  N
  • TOP HEAD :  FLAT HINGED TOP
  • BOTTOM HEAD :  DISHED
Technical Drawings/Spec Sheets
View Documents Drawing
ADDITIONAL DESCRIPTION

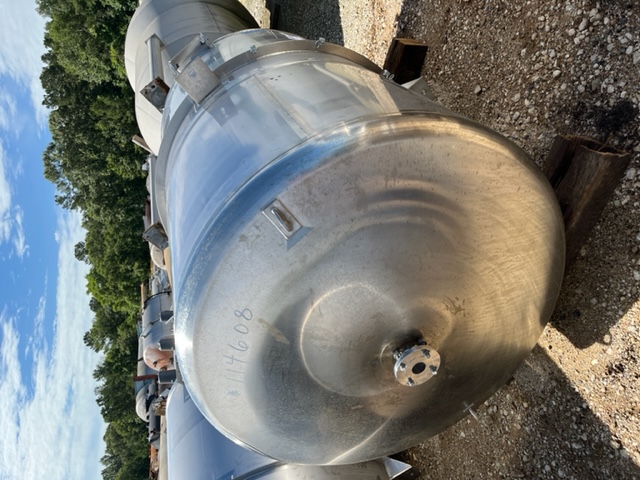

Used 304 polished stainless steel single wall mix tank. Mfg. by ICC Northwest in 2021. 998 Gallon capacity, 57" diameter x 7' high. Atmospheric @ 200 deg. F. On lug supports, dished bottom head and flat hinged top. (2) internal sidewall baffles. Set up for top bridge mounted agitator, includes agitator shaft & blades. Nozzle connections: Top 4" agit., (1)2" TC, (2)4" TC, (2)2" FNPT, Btm. 2" TC (CBO).
