114599 VESSELS/REACTORS
  • ITEM NO :  114599
  • QTY :  1
  • ALLOY :  S
  • GALLONS :  12586
  • DIA/WIDTH (FT'IN") :  11'0"
  • LENGTH (FT'IN") :  19'0"
  • SHELL PSI :  87
  • SHELL TEMP DEG. F :  399
  • V/H :  H
  • SHELL MATERIAL :  304LSS
  • CODE :  ASME U-STAMP
  • JKT/COIL PSI :  174
  • JKT/COIL TEMP DEG. F :  399
  • AGITATED Y/N :  N
  • TOP HEAD :  DISHED
  • BOTTOM HEAD :  DISHED
ADDITIONAL DESCRIPTION

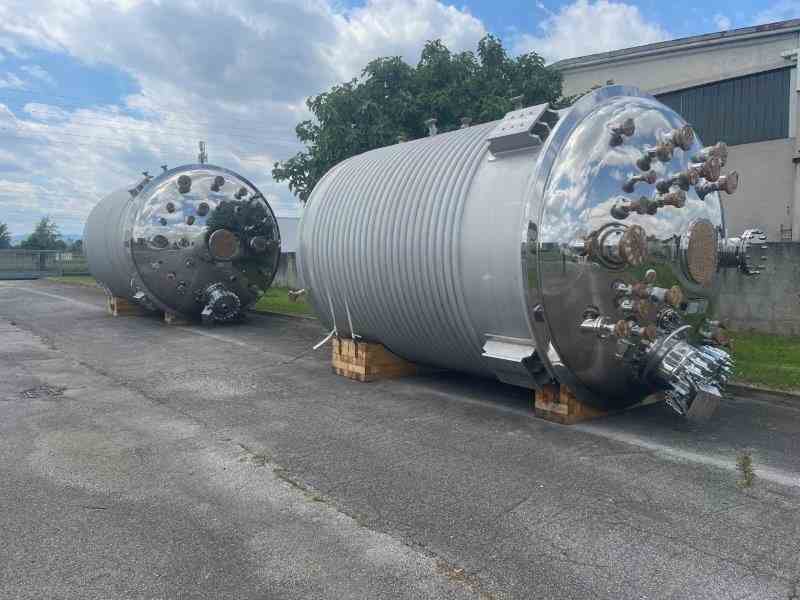

Unused 12,586 gallon 304L stainless steel reactor. Internal MAWP 87 psi @ 399°F. Halfpipe MAWP 174 psi @ 399°F. Half Pipe on bottom half of shell and bottom head. Sanitary polished internal and exterior top shell. 11.15 ft Diameter x, 19.69 ft tall. ASME, U-Stamp and PED (Double certification). Ready to be equipped with agitator (top flange and internal baffles). Built 2024.
