114214 VESSELS/REACTORS
  • ITEM NO :  114214
  • QTY :  1
  • ALLOY :  S
  • GALLONS :  1500
  • DIA/WIDTH (FT'IN") :  6'0"
  • LENGTH (FT'IN") :  8'7"
  • SHELL PSI :  90
  • FULL VAC. Y/N :  Y
  • SHELL TEMP DEG. F :  390
  • V/H :  V
  • SHELL MATERIAL :  316LSS POLISHED INTERNAL
  • CODE :  NB
  • WALL :  .3125"
  • JKT/COIL PSI :  230
  • JKT/COIL TEMP DEG. F :  450
  • JKT/COIL MATERIAL :  316LSS
  • AGITATED Y/N :  Y
  • AGITATOR HP :  20
  • AGITATOR MATERIAL :  SS
  • TOP HEAD :  DISHED
  • BOTTOM HEAD :  DISHED
Technical Drawings/Spec Sheets
View Documents Drawing
View Documents NB Papers
ADDITIONAL DESCRIPTION

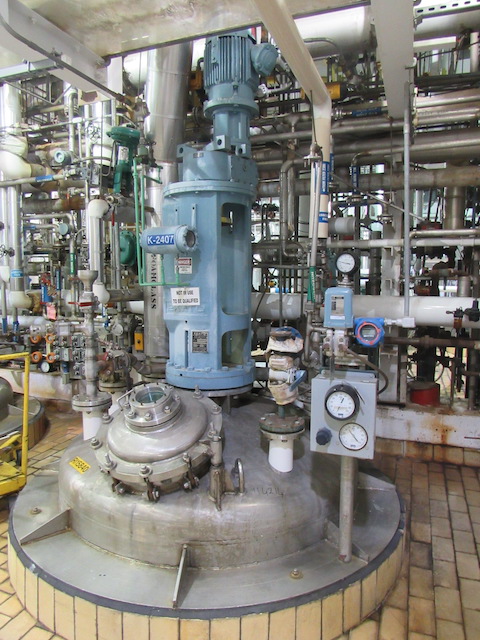

Previously utilized in an API facility. Used 1,500 gallon Process Reactor; Mfg. by Alloy Fab. 316L stainless steel with #4 polished internal finish rated 90 FV psi @ 390 deg. F. Jacket rated 230 psi @ 450 deg. F, 316L stainless steel 3" half pipe coil jacket, (5) turns @ 4.5" pitch on shell bottom head and (2) zones of (9) turns @ 4.5" pitch on shell o.d. (4) internal side wall baffles. Center top entering 20 hp Ekato agitator. With dished heads. On lug supports.
