113965 EXCHANGERS
  • ITEM NO :  113965
  • QTY :  1
  • ALLOY :  S
  • SQ.FT. :  1614
  • MATERIAL (S) :  CS
  • MATERIAL (T) :  316LSS
  • MATERIAL (H) :  316LSS
  • PSI (S) :  145FV
  • PSI (T) :  290FV
  • TEMP. DEG. F (S) :  212
  • TEMP. DEG. F (T) :  212
  • TUBE LENGTH FT'IN" :  9'0"
  • V/H :  V
  • SHELL DIAMETER FT'IN" :  3'0"
ADDITIONAL DESCRIPTION

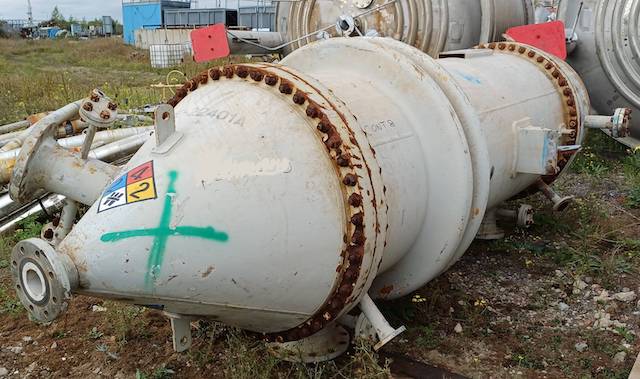

Used 150 square meter 316L stainless steel tube, head and carbon steel shell vertical heat exchanger, design pressure tubeside 20 bar + full vacuum @ 100 degrees C, shell side 10 barg + full vacuum @ 100 degrees C, duty 1.41 MW, 1000mm diameter x 2700mm long,
