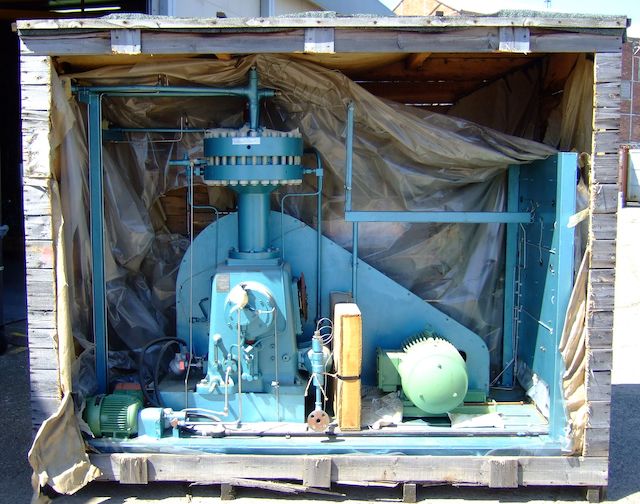

68612 COMPRESSORS-DIAPHRAGM
  • ITEM NO :  68612
  • QTY :  1
  • ACFM :  2.9
  • MANUFACTURER :  CORBLIN
  • MODEL :  A4C85
  • DISCHARGE :  1209
  • HP :  14.8
  • DRIVER RPM :  400
  • S/N :  40698
  • PREVIOUS SERVICE :  HYDROGEN
Technical Drawings/Spec Sheets
View Documents Operating and Maintenance Instructions
View Documents Nameplate
View Documents Nameplate
View Documents Pump Nameplate
View Documents Drive Motor Nameplate
ADDITIONAL DESCRIPTION
UNUSED; 5" STROKE; BORE-70MM (2 3/4"); SUCTION PRESSURE-17 KG/CM2 (242 PSI); DISCH. PRESSURE-85 KG/CM2 (1209 PSI); 5.05 M3/HR CAPACITY; *TYPE 22A (DIAPHRAM TYPE); HYDROGEN COMPRESSOR; BELT DRIVEN BY 11 KW MOTOR;
