115416 EXCHANGERS
  • ITEM NO :  115416
  • QTY :  1
  • ALLOY :  S
  • SQ.FT. :  1622
  • MATERIAL (T) :  304SS
  • PSI (S) :  149
  • PSI (T) :  149
  • TEMP. DEG. F (S) :  150
  • TEMP. DEG. F (T) :  150
  • SHELL DIAMETER FT'IN" :  2'1"
  • O.A.L FT'IN" :  5'0"
Technical Drawings/Spec Sheets
View Documents Specs
View Documents Drawing
YouTube Videos
Unused Heat Exchanger Video Link Unused Heat Exchanger Video Link
ADDITIONAL DESCRIPTION

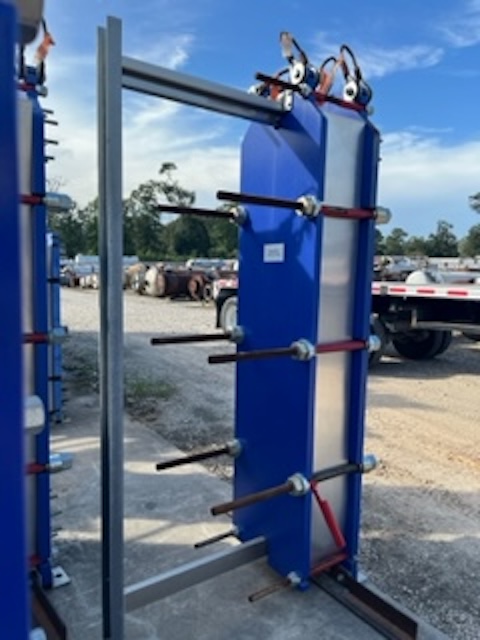

Unused estimated 1622 sq. ft. plate heat exchanger. Mfg. by Alfa Laval in 2022. Model TL15-BFG. 149.4 psi design pressure (MAWP). 150.1°F design temperature max. 32.0°F design temperature, min (MDMT). Alloy 304 stainless steel plate material. 0.0157" plate thickness. NBRP clip-ads (hot & cold side) gasket material/attachment. 59.96"L x 25.08"W x 105.98"H.
