114744 EXCHANGERS

ITEM NO : 114744
QTY : 1
ALLOY : C
SQ.FT. : 299
MATERIAL (S) : CS
MATERIAL (T) : CS
MATERIAL (H) : CS
PSI (S) : 405FV
PSI (T) : 405FV
TEMP. DEG. F (S) : 300
TEMP. DEG. F (T) : 330
TUBE LENGTH FT'IN" : 13'0"
V/H : H
CODE : NB
TEMA TYPE : AEU
SHELL DIAMETER FT'IN" : 1'3"

Technical Drawings/Spec Sheets

U-1

(no title)

ADDITIONAL DESCRIPTION

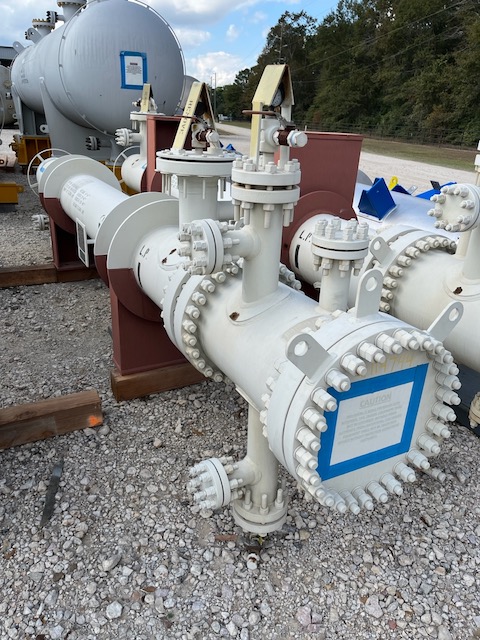

Unused 299 sq. ft. heat exchanger. Mfg. by Fabsco Shell and Tube in 2023. 3.2 Design duty (MMBTU/Hr). Shell Design Rating: 375/FV psi @ 300 deg. F. Tube Design Rating: 400/FV psi @ 330 deg. F. Shell mawp 405/FV psi @ 300 deg. F. Tube mawp 405/FV psi @ 330 deg. F. 15.25" X 156. Stripper Feed/Debutanizer Bottoms Exchanger. Under Nitrogen Purge
