114775 EXCHANGERS
  • ITEM NO :  114775
  • QTY :  1
  • ALLOY :  S
  • SQ.FT. :  2685
  • MATERIAL (S) :  CS
  • MATERIAL (T) :  304SS
  • MATERIAL (H) :  304LSS
  • PSI (S) :  150
  • PSI (T) :  50FV
  • TEMP. DEG. F (S) :  212
  • TEMP. DEG. F (T) :  400
  • TUBE LENGTH FT'IN" :  13'0"
  • V/H :  V
  • CODE :  NB
  • TEMA TYPE :  BEM
  • SHELL DIAMETER FT'IN" :  2'10"
Technical Drawings/Spec Sheets
View Documents (no title)
View Documents (no title)
View Documents (no title)
View Documents (no title)
View Documents (no title)
View Documents (no title)
ADDITIONAL DESCRIPTION

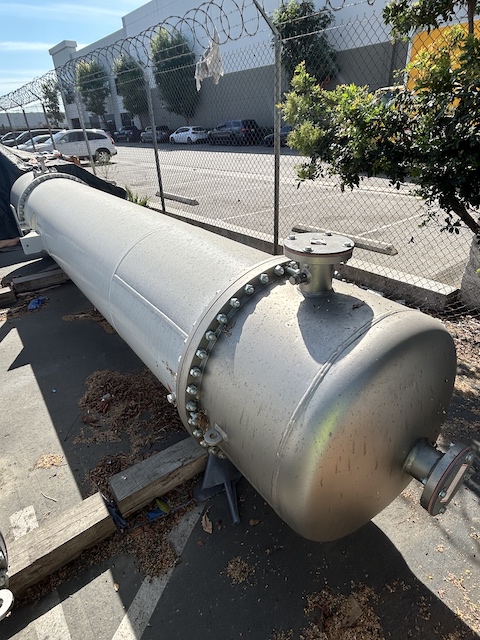

Unused 2685 sq. ft. vertical heat exchanger. 7.5 Design duty (MMBTU/Hr). Mfg. by Alliance Fab (Graham) in 2022. Shell: 150 psi @ 212 deg. F. Tubes: 50FV psi @ 400 deg. F. 34" x 156". Primary Surface Condenser. Under Nitrogen Purge.
