114647 VESSELS/REACTORS
  • ITEM NO :  114647
  • QTY :  1
  • ALLOY :  S
  • GALLONS :  18100
  • DIA/WIDTH (FT'IN") :  12'6"
  • LENGTH (FT'IN") :  19'8"
  • SHELL PSI :  50
  • FULL VAC. Y/N :  Y
  • SHELL TEMP DEG. F :  302
  • V/H :  V
  • SHELL MATERIAL :  304SS
  • CODE :  NB
  • JKT/COIL PSI :  174
  • JKT/COIL TEMP DEG. F :  380
  • JKT/COIL MATERIAL :  304LSS
  • AGITATED Y/N :  N
  • TOP HEAD :  DISHED
  • BOTTOM HEAD :  DISHED
ADDITIONAL DESCRIPTION

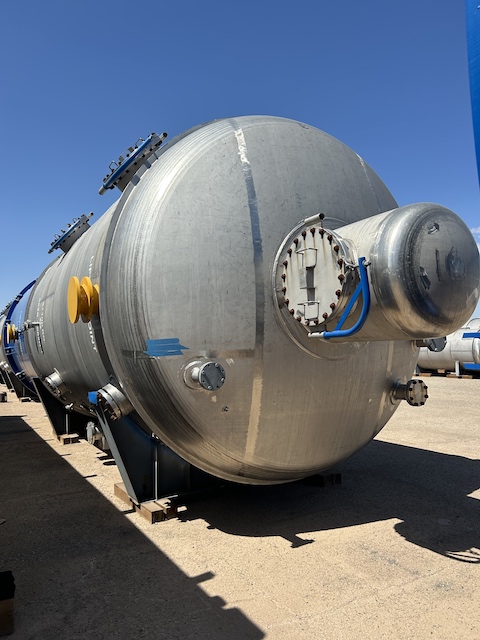

Two Vessels in one: Total combined capacity 18,100 gallons. Tag #19-D-762 One unused 8600 gallon vertical 304 stainless steel vessel with 304L stainless steel internal coils. Mfg. by Equipromex (Mexico) in 2022. Heel collecting tank. 12'6" diameter x 9'2" T/T. 50 FV psi @ 302 deg. F. shell and 174 psi @ 380 deg. F coil. Dished top head. Tag #19-D-763 One 9500 gallon 304 stainless steel vertical vessel. 12'6" diameter x 10'6" T/T. Bleached oil filter tank. 50 FV shell. Dished bottom head. On 14'6" skirt support.
