114683 AIR FIN COOLERS
  • ITEM NO :  114683
  • QTY :  1
  • ALLOY :  C
  • EXTENDED SQ.FT. :  81214
  • BARE SQ.FT. :  3871
  • PSI :  125
  • FULL VACUUM Y/N :  Y
  • TEMP. DEG. F :  385 & 515
  • TUBE MATERIAL :  CS
  • TOTAL TUBES :  504
  • TUBE LENGTH (FT'IN") :  30'0"
  • TUBE DIA(IN") :  1
  • HEADER MATERIAL :  CS
  • PASSES :  2 & 4
  • # OF SECTIONS :  2
  • SIMILAR SECTIONS :  0
  • ROWS PER SECTION :  8 & 8
  • FAN HP :  30
  • # OF FANS :  2
  • O.A.L. (FT'IN") :  33'6"
  • O.A.W. (FT'IN") :  13'10"
  • PREVIOUS SERVICE :  PRODUCT FRACTIONATOR OVERHEAD CONDENSER & JET PRODUCT COOLER
Technical Drawings/Spec Sheets
View Documents (no title)
ADDITIONAL DESCRIPTION

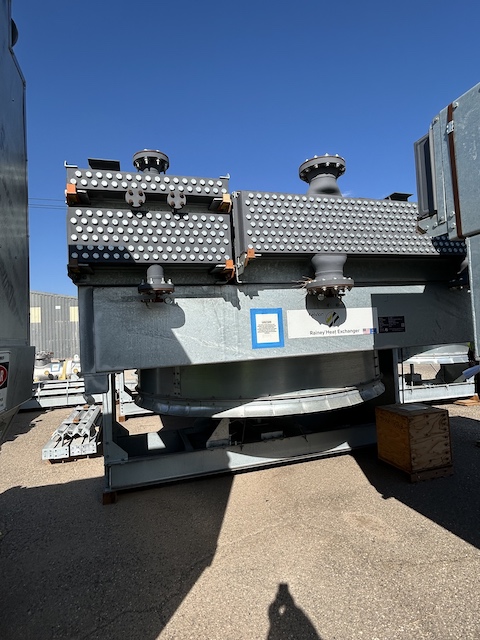

(1) Fin Fan with two different bundles. With combined 3871 Bare sq. ft. and 81214 Extended sq. ft. Unused; Mfg. by Kelvion Thermal Solutions in 2023. Bundle 18-XF-1502A Product Fractionator Overhead Condenser; 2857 bare sq. ft. 59,407 extended sq. ft. 30'0" tube length. 125 FV Design Pressure @ 385 deg. F Design Temperature. With (2) 30 hp fans. (1) bundle, (8) rows, 2 passes. 372-1"od x .083"mw. (2)8" inlets and (2)8" outlets. 18-XF-1504 Jet Product Cooler. 1014 bare sq. ft., 21,807 extended sq. ft. 125 FV Design Pressure @ 515 deg. F. design temperature. Fans included with 18-XF-1502A. (1) bundle, 8 rows, 4 passes. 132-1"od x .109"mw.(1)4" inlet and (1)4" outlet. Under Nitrogen Purge.
