114686 AIR FIN COOLERS
  • ITEM NO :  114686
  • QTY :  1
  • ALLOY :  C
  • EXTENDED SQ.FT. :  86425
  • BARE SQ.FT. :  4115
  • PSI :  325
  • FULL VACUUM Y/N :  y
  • TEMP. DEG. F :  600
  • TUBE MATERIAL :  CS
  • TOTAL TUBES :  524
  • TUBE LENGTH (FT'IN") :  30'0"
  • TUBE DIA(IN") :  1
  • HEADER MATERIAL :  CS
  • # OF SECTIONS :  1
  • SIMILAR SECTIONS :  0
  • ROWS PER SECTION :  8
  • FAN HP :  25
  • # OF FANS :  2
  • O.A.L. (FT'IN") :  33'3"
  • O.A.W. (FT'IN") :  14'5"
  • PREVIOUS SERVICE :  DIESEL PRODUCT COOLER
Technical Drawings/Spec Sheets
View Documents (no title)
ADDITIONAL DESCRIPTION

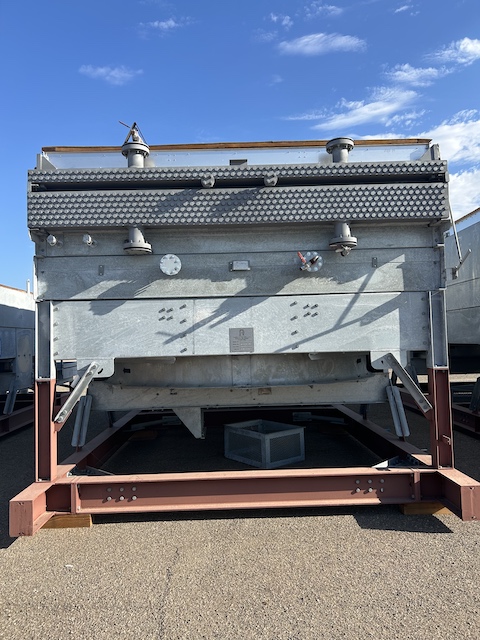

Unused Air Fin Cooler Diesel Product Cooler. Mfg. by Fabsco in 2024. 4115 bare sq. ft. 86,425 extended sq. ft. 30'0" tube length. 51.9 Design duty (MMBTU/hr). 325FV design pressure barg. @ 600 deg. F design temperature. (2) 25 hp fans. 524-1"od x .12"mw. Has a steam coil and top louvers. With steam coil rated (2)3" steam inlets and (2)3" condensate outlets. (2)4" inlets and (2)4" outlets. Under Nitrogen Purge.
